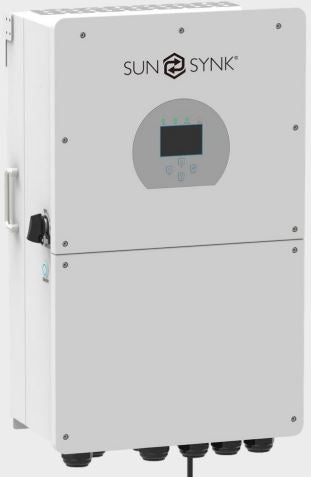

Sunsynk MAX 16kW, 48Vdc Single Phase Hybrid Inverter with WIFI include (5 Years Warranty)

The 16kW single-phase hybrid inverter is the biggest addition to Sunsynk’s low voltage (48V) single-phase inverter range. It’s suitable for off-grid, grid support, backup, and self-consumption PV systems and can also be used in both three-phase and single-phase parallel applications.

In terms of functionality, compatibility, and related accessories, it’s similar to the 5kW & 8kW units but particularly suited to large domestic and small commercial installations.

“It’s the biggest single phase all-in-one inverter with everything built in, in the world”, Keith Gough, Sunsynk CEO. A true monster!

Features:

• A total of 15 x inverters can be connected in a three-phase configuration (five units per phase) - giving a maximum power output of 240kW.
• 3 x inverters can be connected in a single-phase configuration giving a total power of 48kW.
• Contains 3 x MPPTs to allow for flexible PV array designs and improved efficiency.
• Programmable multiple operation modes: on-grid/off-grid & UPS.
• IP65 protection rating - suitable for most outdoor installations.
• Wi-Fi dongle as standard – enabling remote monitoring via the Sunsynk cloud
• Compatible with leading lithium battery brands such as Hubble Lithium, Pylontech LV, Freedomwon and Kodak (BL3.6)..

Installations with Sunsynk products now need to be registered here to gain full activation of the warranty.

For installations with Pylontech, REVOV and Hubble Lithium batteries use this BMS cable: SUN-CAN-3M

For installations with Freedom Won batteries use this BMS cable: F-WON-CAN-SUN

For firmware updates, ensure that the inverter is on bypass mode and the PV is off. Failure to do this may damage your inverter.
