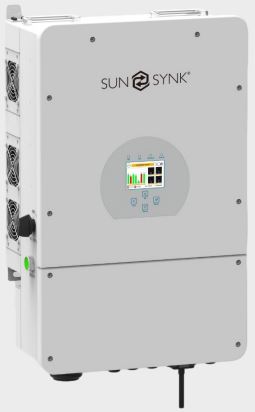

Sunsynk 8kW, 48Vdc Single Phase Hybrid Inverter with WIFI included (5 Years Warranty)
Sunsynk 8kW, 48Vdc Single Phase Hybrid Inverter with WIFI included (5 Years Warranty)
Regular price
R 33,000.00 ZAR
Regular price
Sale price
R 33,000.00 ZAR
Unit price
/
per
Couldn't load pickup availability
The Sunsynk 8kW hybrid Inverter is the ideal inverter for managing power flow from multiple sources such as solar, main electrical grid and generator.
Features:
- Dual MPPT design.
- Compatible with most Li-ion and lead-acid batteries.
- Zero export function.
- Parallels up to 16 x inverters on a single phase.
- Essential and Non-Essential Loads outputs.
- Comes with the Wi-Fi logger and CT as standard.
Installations with Sunsynk products now need to be registered here to gain full activation of the warranty.
Equipment warranty registration needs to take place within 7 (seven) days of commissioning of the project, failure to register the warranty may result in the warranty being made void
NB: Sunsynk 8kW compact version (SUN-8.0-N) is not compatible with Sunsynk 8kW classic/standard version (SUN-8.0).
For firmware updates, ensure that the inverter is on bypass mode and the PV is off. Failure to do this may damage your inverter.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Ampho will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Technical Data:
Warranty: 5 Years
Weight: 36Kg
Rated Power: 8,000W
Min PPT Voltage: 125V
Max PPT Voltage: 425V
DC Startup Voltage: 150V
DC Shutdown Voltage: 150V
Max Input Voltage: 500V
Max DC Power: 10,400W
Max AC Power (5 Minutes): 8,800W
Surge AC Power (1 Second): 12,000W
Max DC Current: 44A
Max DC Inputs: 4
Has DC Fuses: 0
Connector: Screw Terminal Included
Connectors: 0
Euro Efficiency: 96.5%
Transformer: None
MPPT Quantity: 2
Has Integrated DC Switch: Yes
