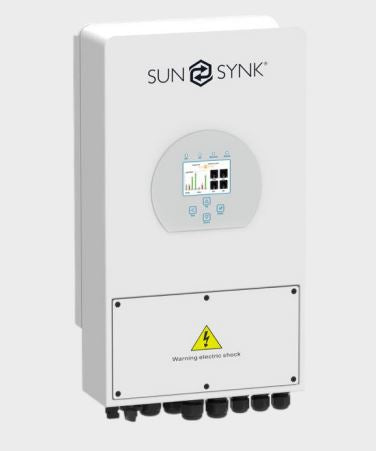

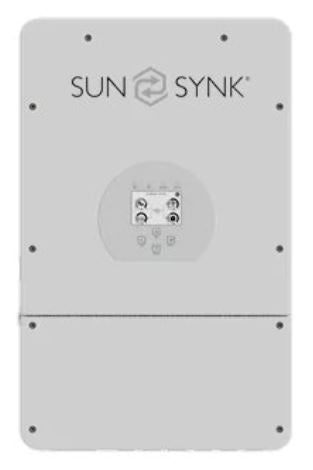

Sunsynk 5kW, 48Vdc Single Phase Hybrid Inverter with WIFI included (5 Years Warranty)
Sunsynk 5kW, 48Vdc Single Phase Hybrid Inverter with WIFI included (5 Years Warranty)
Couldn't load pickup availability
The Sunsynk 5kW hybrid Inverter is the ideal inverter for managing power flow from multiple sources such as solar, mains grid, battery, and generator.
Features:
- Compatible with a wide range of lithium-ion and lead-acid batteries.
- Mobile App for monitoring.
- IP65 rated.
- Automatic switching from grid-tied to off-grid mode.
- Zero export power capability
- 16 x units can be paralleled in a single installation
- Essential and non-essential loads outputs.
- Wi-Fi dongle (for remote monitoring) and CT-clamp as standard.
Installations with Sunsynk products now need to be registered here to gain full activation of the warranty.
Before installation, please ensure that you check that the Inverter is updated to the latest firmware version.
Equipment warranty registration needs to take place within 7 (seven) days of commissioning of the project, failure to register the warranty may result in the warranty being made void.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Ampho will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Technical Data
Warranty: 5 Years
Weight: 27Kg
Rated Power: 5,000W
Min PPT Voltage: 125V
Max PPT Voltage: 425VDC
Startup Voltage: 150VDC
Shutdown Voltage: 150V
Max Input Voltage: 500V
Max DC Power: 6,500W
Max AC Power (5 Minutes): 5,500W
Surge AC Power (1 Second): 11,000W
Max DC Current: 26A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 0
Euro Efficiency: 96.5 %
Transformer: None
MPPT Quantity: 2
Has Integrated DC Switch: Yes
