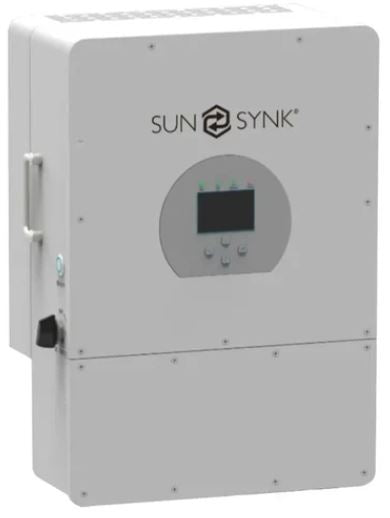

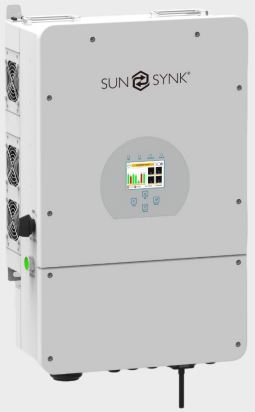

Sunsynk 12kW, 48Vdc Three Phase Hybrid Inverter with WIFI included (5 Years Warranty)

Sunsynk 12kW, 48Vdc Three Phase Hybrid Inverter with WIFI included (5 Years Warranty)

Regular price R 46,500.00 ZAR
Regular price R 59,000.00 ZAR Sale price R 46,500.00 ZAR
Sale Sold out

How do I buy using mobicred?

The Sunsynk three phase hybrid Inverter is the ideal inverter for managing power flow from multiple sources such as solar, main electrical grid and generator for residential or commercial purposes.

These amazing three-phase inverters have a unique feature. They can operate and balance the load, which means you can have 20% connected to one phase, 20% to another, and 60% to the third phase, and it still gives perfect phase rotation. No other inverter in their class can offer this feature.

Features:

  • Maximum charging /discharging current of 240A.
  • Support storing energy from diesel generator.
  • Compatible with most Li-ion and lead-acid batteries.
  • Up to 10 units can be paralleled.
  • Essential and Non-Essential Loads outputs.

Installations with Sunsynk products now need to be registered here to gain full activation of the warranty.

Equipment warranty registration needs to take place within 7 (seven) days of commissioning of the project, failure to register the warranty may result in the warranty being made void.

For firmware updates, ensure that the inverter is on bypass mode and the PV is off. Failure to do this may damage your inverter.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Ampho will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical Data:
Warranty: 5 Years
Weight: 46Kg
Rated Power: 12,000W
Min PPT Voltage: 200V
Max PPT Voltage: 650V
DC Startup Voltage: 200V
DC Shutdown Voltage: 160V
Max Input Voltage: 800V
Max DC Power: 15,000W
Max AC Power (5 Minutes): 13,200W
Surge AC Power (1 Second): 24,000W
Max DC Current: 39A
Max DC Inputs: 3
Has DC Fuses: 0
Connector: MC4
Included Connectors: 12
Euro Efficiency: 99.9%
Transformer: None
MPPT Quantity : 2
Has Integrated DC Switch: Yes
