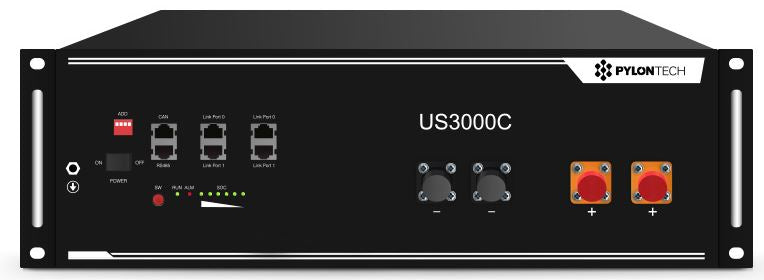

Pylon US3000C 3.5kWh 48V Lithium-Ion Solar Battery (excl. brackets) 5 Years Warranty

The US3000C is a 48V low voltage HESS solar battery system provided by Pylontech, developed with their own lithium iron phosphate cell to ensure the highest safety value and most promising life cycle. A self designed BMS protects the cell from abnormal temperature, current, voltage, SoC and SoH.

Features:

• Modular design for ease of expansion.
• 95% Depth of Discharge (DoD).
• Usable capacity 3374Wh.
• Parallel capability of up to 16 units.
• Intelligent BMS protecting battery cells.
• 6000 Cycles.
• RS485 and CAN compatible.
• Comes with 7-year standard warranty which is extendable to 10-years upon registration.
• Installation flexibility (Rack mount or Wall-mount).

You can register the Pylon US3000C for an additional 3 years of manufacturer warranty for free. Go to http://www.pylontech.com.cn/service/support and complete the information in the 'sign up battery' page.

The US3000C can be used to expand an existing US3000 bank. Please note, the US3000C needs to be used as the master battery when used to expand an existing US3000 bank.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical Data

Warranty: 7 Years

Weight:32 kg

Battery Type:Lithium Ion

Nominal Energy:3552 Wh

Depth of discharge:95.00 %

Voltage:48 V

Continuous Discharge Rate (Normal Use):1776 W

Maximum Discharge Rate (5 Minutes):3552 W

Surge Discharge Rate (15 Seconds):4320 W

Maximum Charge Rate (5 Minutes):1776 W
