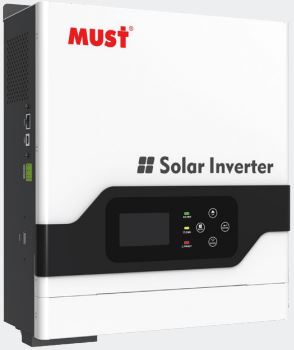

3KW 24V MUST 60A/MPPT SOLAR HYBRID INVERTER (1 Year Warranty)

This is a multi-function inverter/charger, combining functions of inverter, MPPT 60A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features:

• Pure sine wave output
• Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
• Bult in MPPT 60A solar charge controller
• Combining solar system, AC utility, and battery power source to supply continuous power
• Overload, short circuit and Deep discharge protection
• Cold start function
• Support USB, RS485 monitoring function
• WIFI remote monitoring (optional)
• Compatible to generator

Technical Data:

Warranty: 1 Year

Weight: 9.5Kg

Inverter Output

Rated Power: 3000W

Waveform: Pure Sine Wave

Transfer Time: 10ms(UPS / VDE4105) / 20ms(APL)

Battery

Normal Voltage: 24V

Floating Charge Voltage: 27.4V

Overcharge Protection: 30V

Solar Charge & AC Charger:

Maximum PV Array Open Circuit Voltage: 145V

PV Array MPPT Voltage Range: 30~120V

Maximum PV Array Power: 1500W

Maximum Solar Charge Current: 60A

Maximum Efficiency: 98%

AC Charge Current: 20A or 30 A
