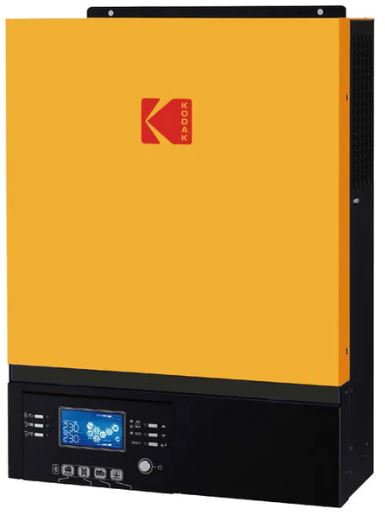

5kW 48V KODAK OG5.48 Solar Off-Grid Inverter VMIII (3 Years Warranty)

The OG 5.48 is ideal as an affordable and fully functional centre of your off-grid system. The wide MPP voltage range makes DC string design with your choice of module easy.   It's best suited to smaller domestic systems where no parallel operation is needed.

 Features:

• Removable LCD control module with multiple communications servers and ATM.
• Built-in Bluetooth for mobile monitoring (Android App is available).
• Replaceable fan design for ease of maintenance Supply load from Grid or PV, even when battery is not available.
• Configurable AC/PV output usage timer and prioritization Selectable high power charging current.
• Selectable input voltage range for home appliances and personal computers.
• Compatible to Utility Mains or generator input Auto restart while AC is recovering Cold start function.


This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Ampho will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Model: Kodak OG5.48

Rated Power: 5000VA / 5000W.

Warranty

3 Years

Input

Voltage: 230V.

Selectable Voltage Range: 170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances).

Frequency Range: 50 Hz/60 Hz (Auto sensing).

Output

AC Voltage Regulation (Batt. Mode): 230VAC +/- 5%.

Surge Power: 10000VA for 5 seconds.

Efficiency (Peak): 93%.

Transfer Time: 15 ms (For Personal Computers); 20 ms (For Home Appliances).

Waveform: Pure sine wave.

Battery

Battery Voltage: 48 VDC.

Floating Charge Voltage: 54 VDC.

Overcharge Protection: 63 VDC.

Solar Charger & AC Charger

Solar Charger Type: MPPT.

Maximum PV Array Power: 5000 W.

Startup Voltage: 150VDC +/- 10VDC

MPP Range @ Operating Voltage: 120 VDC ~ 430 VDC.

Maximum PV Array Open Circuit Voltage: 500 VDC.

Maximum Solar Charge Current: 80 A.

Maximum AC Charge Current: 60 A.

Maximum Charge Current: 80 A.

Physical

Dimension, D x W x H (mm): 115 x 300 x 400.

Net Weight (kgs): 12KG.

Communication Interface: USB/RS485/Bluetooth/Dry contact.

IP Rating: IP21.

Operates at 48v, so an ideal match with the following batteries:
