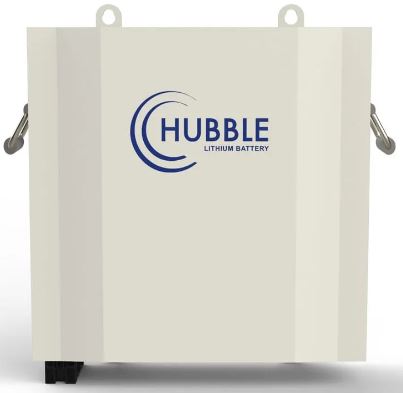

5.5kWh 51V Hubble Lithium AM2 Battery (10 Years Warranty)

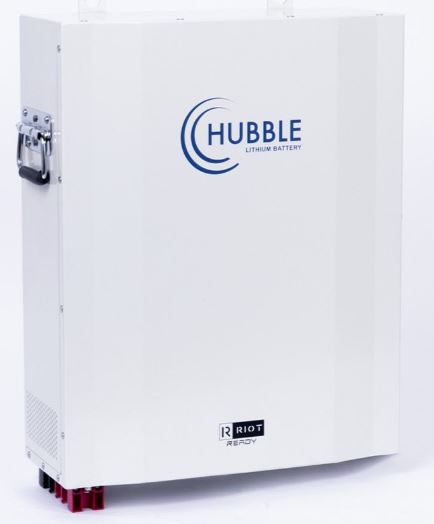

Hubble Lithium's AM2 model is a low voltage (51V), 5.5kWh lithium (NMC) battery pack suitable for off-grid, back-up and self-consumption residential energy systems.

Features:

• Capable of paralleling up to 15 x units in a single string giving a total storage capacity of 82,5kWh.
• 1C battery capable of providing a continuous charge/discharge power of 5.5kW.
• Versatile compatibility with leading inverter brands such as Victron, Kodak and Sunsynk.
• 10-year warranty, 15-year design life for the battery cells.
• Installation flexibility – the battery can either be wall-mounted or rack mounted.
• Remote monitoring via the optional Hubble Cloudlink device.
• Heavy duty side handles for easy handling and mounting on the wall.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Ampho will not be held liable for any product malfunctions as a  result of incorrectly installed systems.

Technical Data:

Warranty: 10 Years

Weight: 45 kg

Battery Type: Lithium Ion

Nominal Energy: 5520 Wh

Depth of discharge: 100%

Voltage: 48 V

Continuous Discharge Rate (Normal Use): 5500 W

Maximum Discharge Rate (5 Minutes): 5500 W

Surge Discharge Rate (15 Seconds): 6000 W

Maximum Charge Rate (5 Minutes): 5500 W
